WoWee - World of Warcraft Engine Experiment

WoWee logo

A native C++ World of Warcraft client with a custom Vulkan renderer.

Sponsor Join the WoWee Discord

WoWee supports Vanilla 1.12, TBC 2.4.3, and WotLK 3.3.5a through expansion-specific profiles and packet parsers. It has been tested with AzerothCore/ChromieCraft, TrinityCore, MaNGOS, and Turtle WoW 1.18.

Watch the latest demonstration · Download the latest release · Read the project status

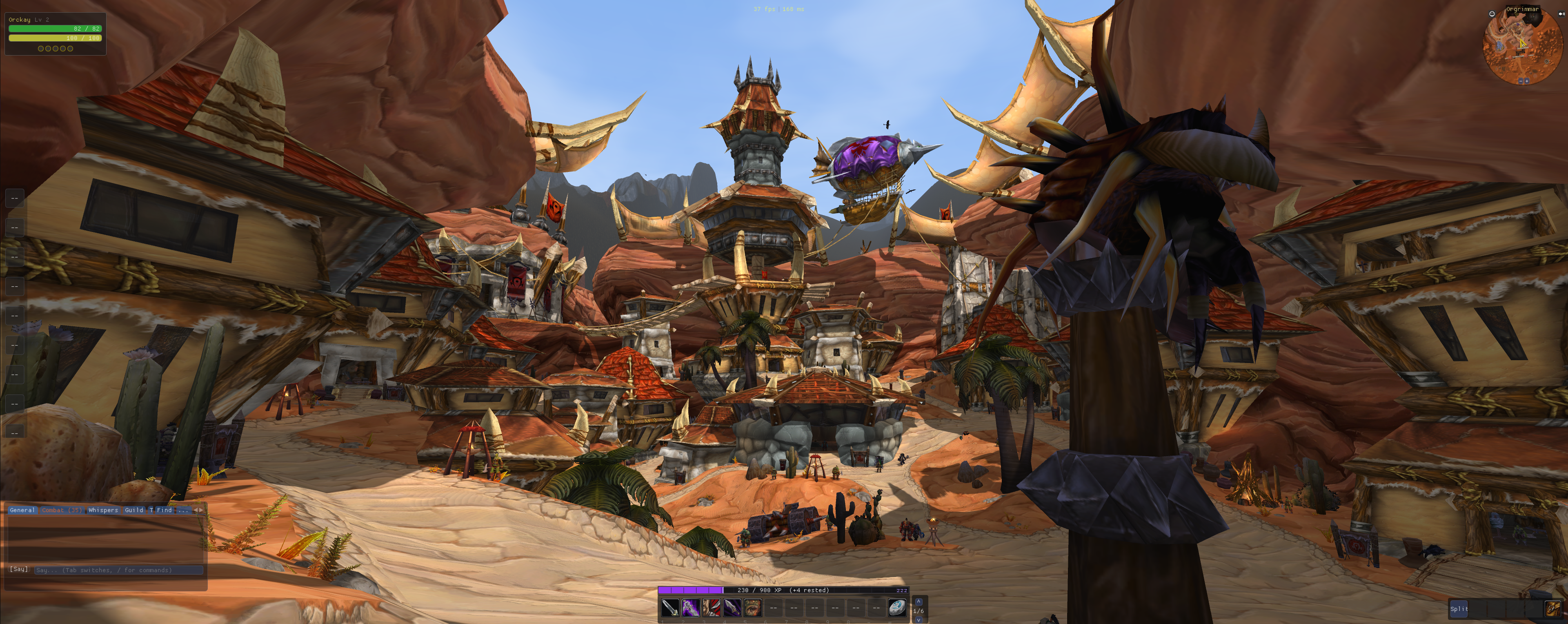

WoWee rendering Orgrimmar

[!NOTE] macOS release DMGs are Developer ID signed, notarized by Apple, and stapled before publication. Gatekeeper should identify them as notarized Developer ID software without requiring an Open Anyway exception.

[!IMPORTANT] WoWee is an educational and research project. It contains no Blizzard Entertainment assets, data, or proprietary code. You must supply your own legally obtained game data and comply with the laws in your jurisdiction. WoWee is not affiliated with or endorsed by Blizzard Entertainment.

What works

This is an active work in progress, not a drop-in replacement for the official client. See Known limitations before reporting a bug.

Experimental components

The world editor and AMD FSR3 frame generation are early developer features. Their interfaces, formats, runtime requirements, and behavior may change. FSR2 upscaling is available, but graphics acceleration features are still under active development and should not be treated as release-critical functionality.

Quick start

1. Install dependencies

Unicorn enables Warden execution. StormLib is needed by the asset extractor, but is not required by the client at runtime.

Ubuntu / Debian ```bash sudo apt install build-essential cmake pkg-config git \ libsdl2-dev libglm-dev libssl-dev zlib1g-dev libx11-dev \ libvulkan-dev vulkan-tools glslc \ libavformat-dev libavcodec-dev libswscale-dev libavutil-dev # Optional: Warden execution and MPQ extraction sudo apt install libunicorn-dev sudo apt install libstorm-dev ```
Fedora ```bash sudo dnf install gcc-c++ cmake pkgconf-pkg-config git \ SDL2-devel glm-devel openssl-devel zlib-devel libX11-devel \ vulkan-devel vulkan-tools glslc ffmpeg-devel # Optional: Warden execution sudo dnf install unicorn-devel ``` For `asset_extract`, build [StormLib](https://github.com/ladislav-zezula/StormLib) from source if it is unavailable in your enabled Fedora repositories.
Arch Linux ```bash sudo pacman -S base-devel cmake pkgconf git \ sdl2-compat glm openssl zlib libx11 \ vulkan-headers vulkan-icd-loader vulkan-tools shaderc \ ffmpeg ``` Install `unicorn` for optional Warden execution. StormLib is not in the official repositories; install `stormlib-git` from the AUR if you need `asset_extract`.
macOS Vulkan runs through MoltenVK. ```bash brew install cmake pkg-config sdl2 glm openssl@3 zlib ffmpeg \ vulkan-loader vulkan-headers molten-vk shaderc # Optional: Warden execution and MPQ extraction brew install unicorn stormlib ```

For Windows/MSYS2, Visual Studio, and platform-specific notes, see the complete build guide.

2. Clone and build

git clone --recurse-submodules https://github.com/Kelsidavis/WoWee.git
cd WoWee

cmake -S . -B build -DCMAKE_BUILD_TYPE=Release
cmake --build build --parallel

The optional build.sh and build.ps1 helpers fetch supported AMD SDK sources when needed. A plain CMake build works without them and uses the internal fallback when optional SDK components are unavailable.

3. Extract game data

WoWee does not read MPQs at runtime. Extract a legally obtained client into a loose-file Data/ tree with a generated manifest.json:

# Linux / macOS
./extract_assets.sh /path/to/WoW/Data wotlk

# Windows PowerShell
.\extract_assets.ps1 "C:\Games\WoW-3.3.5a\Data" wotlk

Valid targets are classic, turtle, tbc, and wotlk. Each target is kept separately, so multiple expansions can coexist:

Data/
└── expansions/
    ├── classic/manifest.json
    ├── turtle/manifest.json
    ├── tbc/manifest.json
    └── wotlk/manifest.json

The login-screen Assets selector normally follows the selected server’s expansion. It can be overridden per saved server profile.

To store data elsewhere:

export WOW_DATA_PATH=/path/to/extracted/Data

The Asset Pipeline GUI provides extraction, texture-pack management, ordering, and override controls.

4. Run

./build/bin/wowee

If a MaNGOS realm advertises a world address that is unreachable from your LAN, override only the host; the advertised port is preserved:

export WOWEE_REALM_HOST_OVERRIDE=192.168.1.50

Turtle WoW defaults to authentication build 7272. Older compatible servers can use:

export WOWEE_TURTLE_AUTH_BUILD=7234

Android

The Android client is the same tree built for arm64. It reaches the login screen, character selection and the world, and is tested on a Pixel 9a.

Install wowee-<version>-android-arm64.apk from the latest release. It needs Android 13 or newer on arm64: Android’s libvulkan.so only exports the Vulkan 1.2/1.3 entry points the renderer uses from API 33. The APK is signed with the debug key, so Android asks you to allow installation from an unknown source.

Game data on a phone

Extract on a desktop exactly as above. There is no need to extract on the device. A full extraction is around 18 GB, so cut it down to a profile that fits, then copy the result across:

tools/android/make_minimal_data.py --source ~/Data --out ~/Data-phone \
    --profile world --maps all
adb push ~/Data-phone/. /sdcard/Android/data/com.wowee.client/files/Data/

The trailing /. matters: push the contents, not the directory. Nesting it one level deeper leaves the client unable to find its manifest.json, and it starts with no game data at all.

Profile Size Reaches
login 787 MB Login, character selection and creation. No world
world --maps azeroth 7.5 GB One continent
world --maps all 12 GB Every map
full 18 GB Everything, sound included

A subset carries its own rewritten manifest.json, because that file is how the client locates its data root. See tools/android/README.md for the profiles and how to check one.

Touch controls

Input Action
Left thumb, lower left Move and strafe
Right thumb, drag Turn the view; the character faces where it looks
Two fingers Zoom the camera
Tap Target, interact, and everything in the interface

A keyboard and mouse should work when attached, since SDL delivers them the same way, but that is untested.

Building it yourself

tools/build-android-deps.sh arm64-v8a          # OpenSSL, once
cd android && ./gradlew :app:assembleDebug     # needs ANDROID_HOME and NDK 28

Debug builds carry this project’s own music; release builds leave it out, the same split the desktop archives use. adb logcat -s wowee shows the client’s log, and adb shell setprop debug.wowee.loglevel info opens it up beyond warnings.

Container builds

Docker or Podman can build all supported targets without installing a host toolchain:

./container/run-linux.sh    # build/linux/bin/wowee
./container/run-macos.sh    # build/macos/bin/wowee
./container/run-windows.sh  # build/windows/bin/wowee.exe

PowerShell equivalents are included. macOS defaults to ARM64; set MACOS_ARCH=x86_64 for Intel. See Container Builds for all options.

Experimental world editor

wowee_editor is an early-stage tool for experimenting with custom zones and open, JSON-friendly formats. It is not yet a production-ready content pipeline.

cmake --build build --target wowee_editor
./build/bin/wowee_editor --data Data

# Batch conversion examples
./build/bin/wowee_editor --convert-m2 Creature/Bear/Bear.m2 --data Data
./build/bin/wowee_editor --convert-wmo World/WMO/Stormwind/Stormwind.wmo --data Data

Current work includes terrain editing, object placement, water, NPCs, quests, lighting, and experimental AzerothCore export. Exported zones can load from custom_zones/ or output/, but formats and compatibility may change.

See the editor format specification for the custom binary and catalog formats.

Controls

Input Action
W A S D Move
Mouse Look or orbit camera
Left click Target or interact
Tab Cycle targets
1–0, -, = Action-bar slots 1–12
B / C / P / N Bags / character / spellbook / talents
L / M / O Quest log / map / guild roster
Enter or / Open chat
/unstuck Recover when terrain or WMO collision traps the character
Escape Close windows or deselect
F1 / F4 Performance HUD / shadows

On Android the same actions are driven by touch controls.

Graphics presets and individual controls are available under Video Settings. Shadows and MSAA have the largest performance cost; FSR2 can improve frame rate on supported hardware.

Documentation

Getting started

Internals

Development and CI

WoWee uses C++20 and CMake 3.15+. GitHub Actions builds Linux x86-64/ARM64, Windows x86-64/ARM64, and macOS ARM64 releases. Security checks include CodeQL, Semgrep, AddressSanitizer, and UndefinedBehaviorSanitizer.

The codebase is split into focused rendering, networking, gameplay, asset, UI, audio, and editor modules. Start with the architecture guide before making broad changes.

Known limitations

When reporting a bug, include the relevant client log lines, expansion, server core, and reproduction steps.

License and references

WoWee source code is available under the MIT License. World of Warcraft and its assets are property of Blizzard Entertainment, Inc.

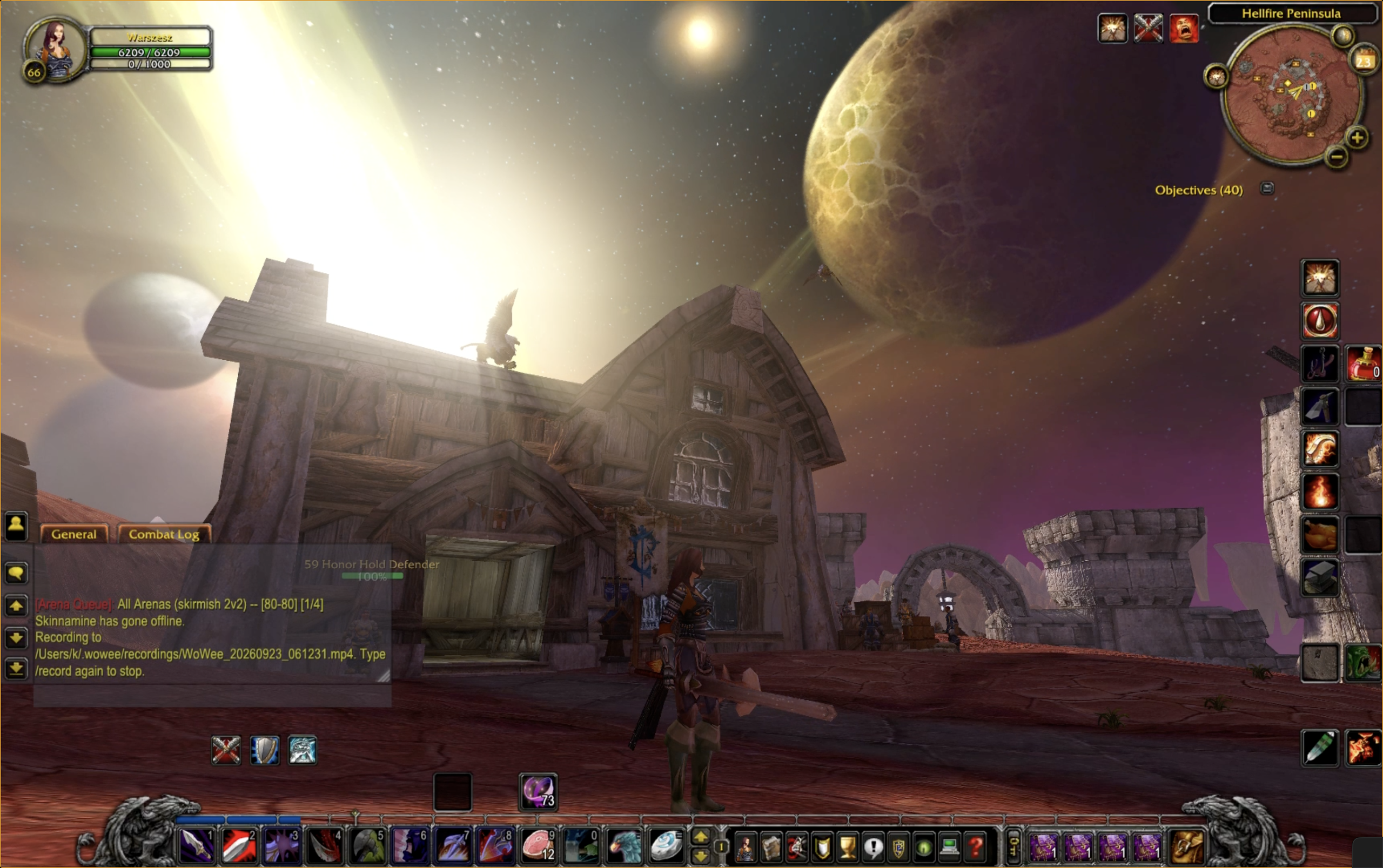

More screenshots
